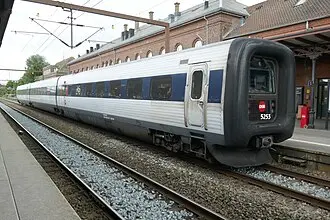

Danish diesel multiple unit with the big black rubber face; current silver-and-navy DSB livery.
Sizes are the outer dimensions of the body (length × width × height, mm). Colours show the livery; prints are single-colour. Sized to fit a toy chassis.
Liveries and logos are based on photos on Wikimedia Commons.
Press a number to move to that part.
The big black rubber cushion round the whole front. When two units couple, the cushions press together and form a sealed walk-through gangway.
The windscreen in a thin grey frame, set back inside the opening in the rubber.
The black panel below the windscreen, with the lamps, the DSB mark and the unit number.
The lower, white lamps on each side of the black panel.
The red lamps above the headlights.
The automatic coupler in the notch below the rubber.
The rubber wraps round onto the sides and the roof.
The navy panel on the cab side.
The door with a window behind the cab.
The DSB dark blue band along the windows.
Large windows with rounded corners. They read lighter than the band in the photographs.
The yellow line above the windows of the first-class section.
Below the windows the body is ribbed aluminium.
The grey band along the bottom of the side.
The aluminium roof.
The depth of the cushion and the recess of the inner panel were read off a side-on photograph of a unit coupled to an IC4. No side-on photograph of a free leading end was found.
The 3.10 m width is exactly 40 mm (12.9 mm/m). The rubber, the cab window and the door are close to scale; the saloon of about 17 m is squashed to six windows.
Click a value to find the classes that share it.
Choose a line to zoom to it on the map. "No map": no shape could be cut out of OpenStreetMap for that line.
@prefix cls: <https://nakamura196.github.io/train-bodies/rdf/class/> .
@prefix dcterms: <http://purl.org/dc/terms/> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
@prefix mdl: <https://nakamura196.github.io/train-bodies/rdf/model/> .
@prefix prov: <http://www.w3.org/ns/prov#> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
@prefix schema: <https://schema.org/> .
@prefix skos: <http://www.w3.org/2004/02/skos/core#> .
@prefix tb: <https://nakamura196.github.io/train-bodies/vocab#> .
@prefix wd: <http://www.wikidata.org/entity/> .
@prefix wdt: <http://www.wikidata.org/prop/direct/> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .
cls:Q706345 a skos:Concept,
tb:VehicleClass ;
rdfs:label "IC3"@en,
"デンマーク国鉄IC3型気動車"@ja ;
skos:exactMatch wd:Q706345 ;
skos:inScheme <https://nakamura196.github.io/train-bodies/rdf/> ;
skos:prefLabel "IC3"@en,
"デンマーク国鉄IC3型気動車"@ja ;
prov:wasDerivedFrom wd:Q706345 ;
wdt:P1064 wd:Q1999572 ;
wdt:P137 wd:Q2476154,
wd:Q83824,
wd:Q846655 ;
wdt:P17 wd:Q29,
wd:Q35,
wd:Q801 ;
wdt:P176 wd:Q2675204 ;
wdt:P2052 180.0 ;
wdt:P279 wd:Q1567915 ;
foaf:depiction <http://commons.wikimedia.org/wiki/Special:FilePath/P1160325%20DSB%20MFB%205253.jpg> ;
tb:has3DModel true ;
tb:lineUse <https://nakamura196.github.io/train-bodies/rdf/class/Q706345#line1>,
<https://nakamura196.github.io/train-bodies/rdf/class/Q706345#line2> ;
tb:operatingCountry wd:Q29,
wd:Q35,
wd:Q801 ;
tb:usedOn wd:Q74951,
wd:Q846655 ;
schema:subjectOf mdl:ic3 .
<https://nakamura196.github.io/train-bodies/rdf/class/Q706345#line1> a tb:LineUse ;
dcterms:source <https://www.wikidata.org/wiki/Q74951#P3438> ;
skos:note "wikidata"@en ;
tb:line wd:Q74951 ;
tb:sourceSection "P3438" ;
tb:useStatus "current" .
<https://nakamura196.github.io/train-bodies/rdf/class/Q706345#line2> a tb:LineUse ;
dcterms:source <https://www.wikidata.org/wiki/Q846655#P3438> ;
skos:note "wikidata"@en ;
tb:line wd:Q846655 ;
tb:sourceSection "P3438" ;
tb:useStatus "current" .
wd:Q74951 rdfs:label "Jaffa–Jerusalem railway"@en .
wd:Q846655 rdfs:label "Israel Railways"@en .
